Fiber Angle influence and Toughness characterization of bioinspired discontinuous fiber helicoids composite materials produced via additive manufacturing

Influencia del ángulo de fibra y caracterización de la tenacidad de materiales compuestos helicoidales de fibra discontinua bioinspirados producidos mediante fabricación aditiva

Published 2023-12-19

Open | Download
PDF (Spanish) FLIP
Issue
Vol. 20 No. 40 (2023): Table of contents Revista EIA No. 40
Section
Articles
How to Cite
Fiber Angle influence and Toughness characterization of bioinspired discontinuous fiber helicoids composite materials produced via additive manufacturing. (2023). Revista EIA, 20(40), 4017 pp. 1-15. https://doi.org/10.24050/reia.v20i40.1657
DOI

https://doi.org/10.24050/reia.v20i40.1657
Dimensions
PlumX
Citations
Crossref
Citations in Crossref
Scopus
Citations in Scopus
Google Scholar
Europe PMC
Citations in Europe PMC
license
Creative Commons License

This work is licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License.

Copyright statement

The authors exclusively assign to the Universidad EIA, with the power to assign to third parties, all the exploitation rights that derive from the works that are accepted for publication in the Revista EIA, as well as in any product derived from it and, in in particular, those of reproduction, distribution, public communication (including interactive making available) and transformation (including adaptation, modification and, where appropriate, translation), for all types of exploitation (by way of example and not limitation : in paper, electronic, online, computer or audiovisual format, as well as in any other format, even for promotional or advertising purposes and / or for the production of derivative products), for a worldwide territorial scope and for the entire duration of the rights provided for in the current published text of the Intellectual Property Law. This assignment will be made by the authors without the right to any type of remuneration or compensation.

Consequently, the author may not publish or disseminate the works that are selected for publication in the Revista EIA, neither totally nor partially, nor authorize their publication to third parties, without the prior express authorization, requested and granted in writing, from the Univeridad EIA.

Junes Villarraga
Universidad de Antioquia - Colombia
https://orcid.org/0000-0002-7893-5362
Liliana Marcela Bustamante Góez
Universidad de Antioquia - Colombia
Perfil Google Scholar
Pablo Zavattieri
Purdue University - Estados Unidos
Show authors biography

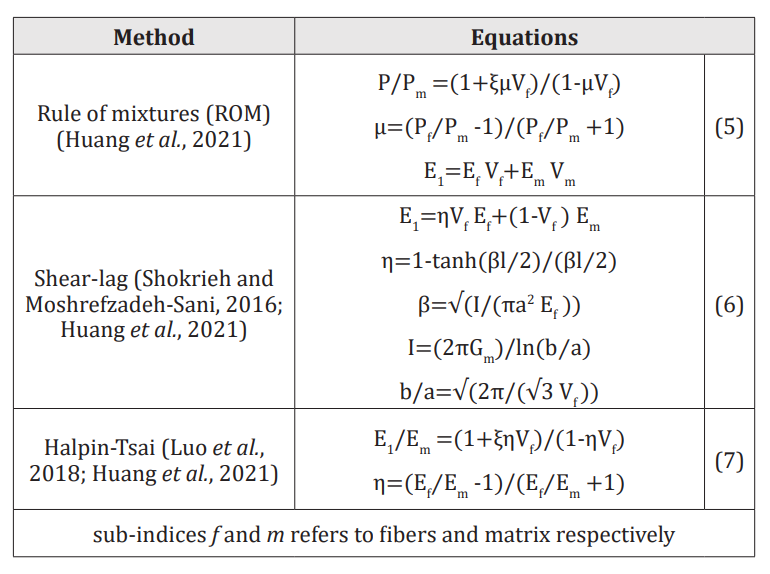

Over millennia nature has produced composite materials with excellent mechanical properties compared to the low properties of their base materials and has managed to obtain a good compatibility between stiffness and toughness; as a result, they are a good source of inspiration for material optimization for applications, such as increasing toughness and damage resistance, something that is difficult in conventional engineering materials. Nowadays eight structural elements are identified in biological materials: fibrous, helicoidal, gradients, layered, tubular, cellular, suture, and overlapping. Helical structures consist of stacks of ordered fibers that form layers that are rotated at a constant angle of inclination. These include plywood and Bouligand structures. Bouligand structures consist of an arrangement of fibrous laminates that completes a 180° turn and provides some biological materials with increased strength and toughness in multiple directions and exceptionally high fracture toughness. The classical composite materials mechanics provides some constitutive model approximations for this type of materials, but they still need to be studied and tested to properly understand their behavior. Injection molding, compression molding, hand layup, resin transfer molding, filament winding, pultrusion, and automated fiber placement are just a few of the traditional methods used to make fiber-reinforced polymer composites (FRPC). However, these traditional manufacturing techniques have a restriction on specific fiber alignment and demand expensive molds, dies, or lithographic masks. Additive manufacturing has the potential to replace many conventional manufacturing processes due to its ability to create complex geometries with customizable material properties and employ several materials simultaneously, among other things. Fused deposition modeling (FDM) is the most widely used manufacturing additive technique for manufacturing FRPC due to its low cost, low energy input, material consumption, and operation simplicity. This work presents three-dimensional models mimicking the Bouligand structures by turning the pitch angle of the layers and a analytical models comparison were made. The specimens were fabricated using the FDM technique. A thermoplastic polyurethane (TPU) was used for the matrix and polylactic acid (PLA) for the fibers. Tensile tests were used to mechanically characterize both the raw materials and the manufactured composites to examine the impact of the helical angle and the contribution of the matrix and fiber materials to the stiffness and toughness of the composite. Experiments and analysis revealed that high rotation angles improve the stiffness, strength, and toughness of the composite.
